Back Up Light Switch Removal and Installation: Removal

CAUTION: Touching a hot exhaust No. 2 pipe will cause a burn.
Do not remove back up light switch until the exhaust system is cool.

NOTE: When replacing switch, be careful not to let dust enter transmission through switch hole.

Hoist vehicle and disconnect connector from back up light switch.
Remove back up light switch (1) from transmission rear case.

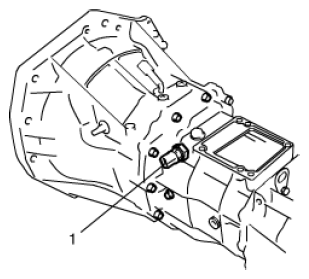

Fig 1: Identifying Back Up Light Switch On Transmission Rear Case
Courtesy of SUZUKI OF AMERICA CORP.
