Clutch Pedal Stroke Inspection

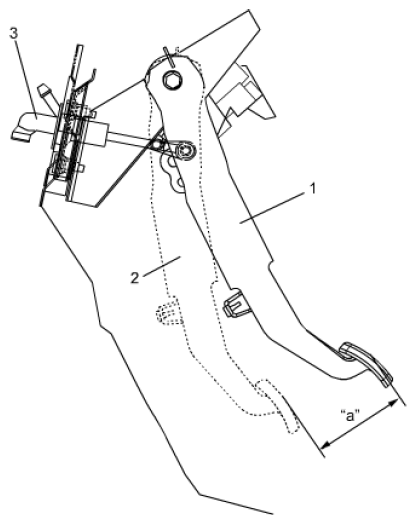

Measure distance between free position (1) and fully depressed position (2) on clutch pedal which is shown by "a" in figure. If clutch pedal stroke is out of specification, replace pedal arm and/or clutch master cylinder (3).
Clutch pedal stroke
"a": 145 mm (5.71 in.)
