Clutch Pedal Position (CPP) Switch (for 4WD Control Module) Inspection and Adjustment: Adjustment

Loosen lock nut of clutch pedal position (CPP) switch (for 4WD control module) (1) while clutch pedal not depressed.
Using ohmmeter, adjust position of clutch pedal position (CPP) switch (for 4WD control module) so that it may become continuity within range of clutch pedal travel "a".
Clutch pedal travel

"a": 116 - 130 mm (4.52 - 5.11 in.)

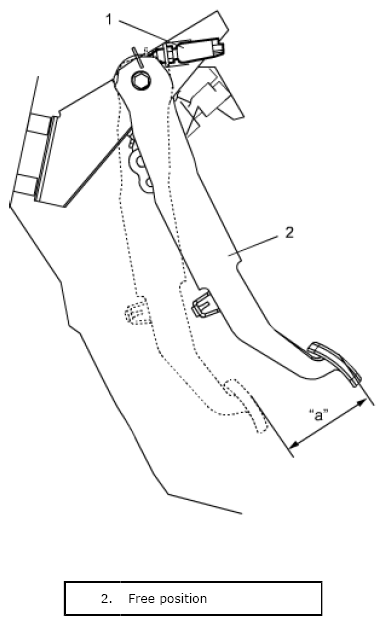

Fig 1: Identifying Clutch Pedal Travel
Courtesy of SUZUKI OF AMERICA CORP.
After adjusting, tighten lock nut to specified torque.
Tightening torque

Clutch switch lock nut (a): 7.5 N.m (0.8 kgf-m, 5.5 lbf-ft)

Fig 2: Clutch Switch And Lock Nut With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
