Clutch Master Cylinder Removal and Installation: Installation

Reverse removal procedure for installation noting the following.

• Apply grease to push rod clevis pin (1).

  "A": Grease 99000-25100 (SUZUKI Silicone Grease)

• Tighten master cylinder attaching nuts (2) to specified torque.

  Tightening torque

  Clutch master cylinder attaching nut (a): 23 N.m (2.3 kgf-m, 17.0 lbf-ft)

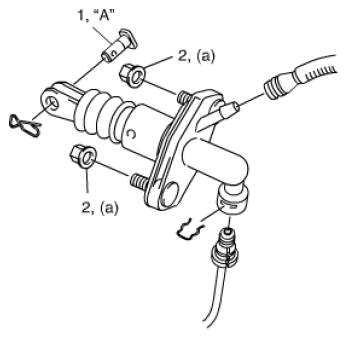

  Fig 1: Clutch Master Cylinder And Related Replacement Components With Torque Specifications

  Courtesy of SUZUKI OF AMERICA CORP.
• Fill reservoir with specified brake fluid and check fluid leakage.
• After installation, bleed air from clutch system and check clutch pedal free travel. Refer to AIR BLEEDING OF BRAKE SYSTEM for air bleeding procedure.

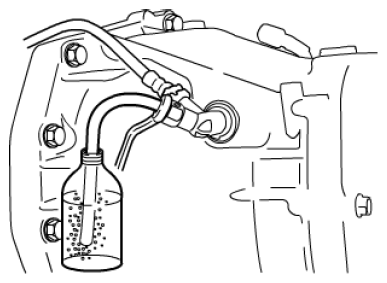

  Fig 2: Bleeding Brake System
