Clutch Cover, Clutch Disc and Flywheel Components

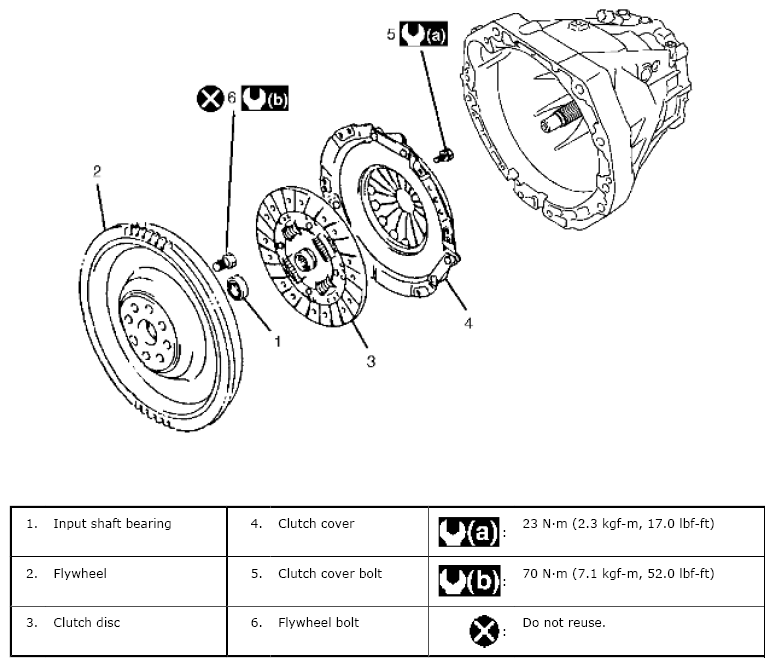

Fig 1: Exploded View Of Clutch Cover, Clutch Disc And Flywheel
G08899243Courtesy of SUZUKI OF AMERICA CORP.
