Upper Arm/Bushing Disassembly and Reassembly: Reassembly
NOTE:
- Apply grease (included in the repair kit) to ball joint and inside of ball stud boot when the ball stud boot is replaced.
- Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.

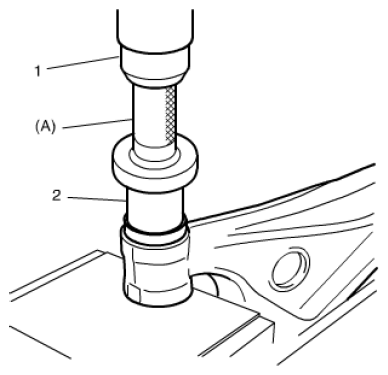

- Press-fit upper arm bushing (2) by using press (1) and special tool.
Special Tool
(A): 09913-75510
