Upper Arm/Bushing Disassembly and Reassembly: Disassembly

Cut rubber (1) of flange of upper arm bushing.
Using grinder (2), grind off flange (3) of upper arm bushing.
NOTE: If you grind the flange (3) of upper arm bushing too much, you will damage the upper arm (4).
Limit the amount of grinding to the minimum amount necessary.

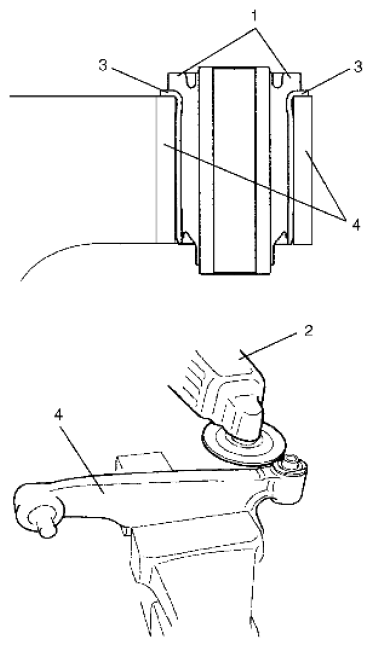

Fig 1: Grinding Off Flange Of Upper Arm Bushing Using Grinder
Courtesy of SUZUKI OF AMERICA CORP.
Push out upper arm bushing by using hydraulic press (1) and special tool.
Special Tool

(A): 09913-68711

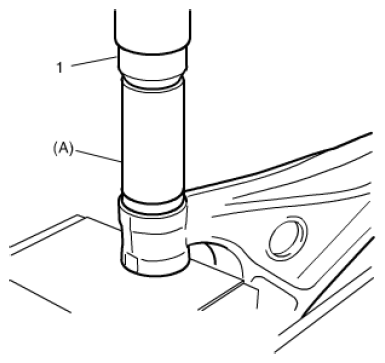

Fig 2: Pushing Out Upper Arm Bushing Using Hydraulic Press And Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
