Upper Arm Removal and Installation: Installation

  1. Install upper arm.
    1. Install upper arm (2) to rear suspension frame.
    2. Insert upper arm bolt (1) from the upper arm inside.
    3. Tighten upper arm mount nuts (3) temporarily by hand.
      NOTE: The upper arm mount nuts are pre-coated with friction stabilizer. If these bolts are reused, they may work loose.
      Be sure to replace the upper arm mount nuts with new ones whenever they are removed.

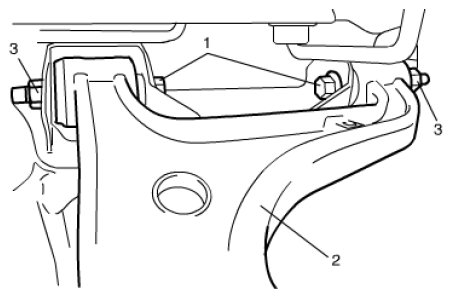

      Fig 1: Identifying Upper Arm, Bolts And Nuts
      G08893966Courtesy of SUZUKI OF AMERICA CORP.
  2. Tighten rear wheel speed sensor harness clamp bolts (1) to specified torque.

    Tightening torque

    Rear wheel speed sensor harness clamp bolt (a): 11 N.m (1.1 kgf-m, 8.5 lbf-ft)

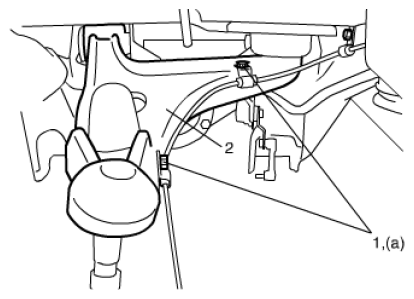

    Fig 2: Tightening Rear Wheel Speed Sensor Harness Clamp Bolts
    G08893967Courtesy of SUZUKI OF AMERICA CORP.
  3. Install rear suspension knuckle refer to REAR SUSPENSION KNUCKLE REMOVAL AND INSTALLATION .
  4. Install trailing rod refer to TRAILING ROD REMOVAL AND INSTALLATION .
  5. Install control rod refer to CONTROL ROD REMOVAL AND INSTALLATION .
  6. Install lower arm refer to LOWER ARM REMOVAL AND INSTALLATION .
  7. Install rear wheels and lower hoist. Refer to WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
  8. Tighten each bolts and nuts to specified torque with vehicle weight on suspension.
    NOTE:
    • It is the most desirable to have vehicle off hoist and in non-loaded condition when tightening them.
    • Tighten lower arm washer and control rod washer with match marks aligned.

    Tightening torque

    Upper arm mount nut: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Shock absorber upper bolt: 60 N.m (6.0 kgf-m, 43.5 lbf-ft)

    Shock absorber lower bolt: 90 N.m (9.0 kgf-m, 65.0 lbf-ft)

    Lower arm outer bolt: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Lower arm mount nut: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Control rod outer bolt: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Control rod mount nut: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Trailing rod rear bolt: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

    Trailing rod mount nut: 128 N.m (13.1 kgf-m, 94.5 lbf-ft)

  9. Check rear toe and camber adjust it as necessary. For check and adjustment procedures, refer to REAR WHEEL ALIGNMENT INSPECTION AND ADJUSTMENT .
