Trailing Rod/Bushing Disassembly and Reassembly: Reassembly

Press-fit trailing rod bushing (2) by using press (1) and special tool.
NOTE:
- Any removed bushing will not fit properly if you reuse it.
  Always use a new bushing.
- Install bushing following the direction shown in figure since diameter "b" is bigger than diameter "a".
Special Tool

(A): 09945-56510

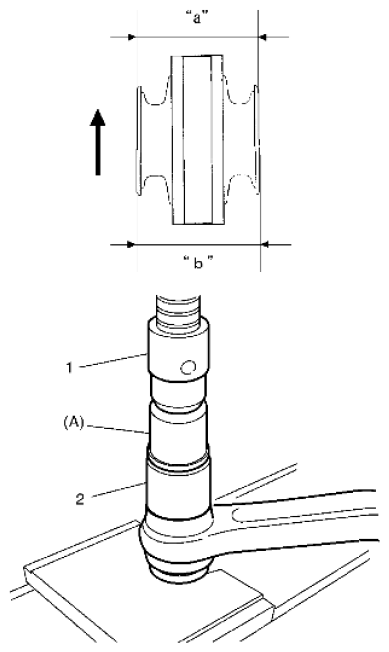

Fig 1: Press-Fitting Trailing Rod Bushing Using Press And Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Press-fit bushing (1) so that dimensions "A" and "B" in figure become equal.

Fig 2: Identifying Bushing Dimension
Courtesy of SUZUKI OF AMERICA CORP.
