Trailing Rod Removal and Installation: Removal

Hoist vehicle and remove rear wheels.

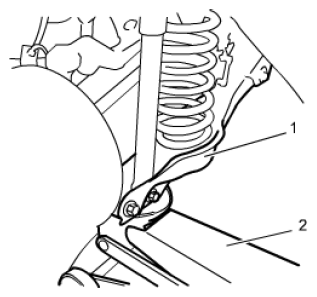

Support lower arm (1) with jack (2).

Fig 1: Supporting Lower Arm Using Jack
Courtesy of SUZUKI OF AMERICA CORP.

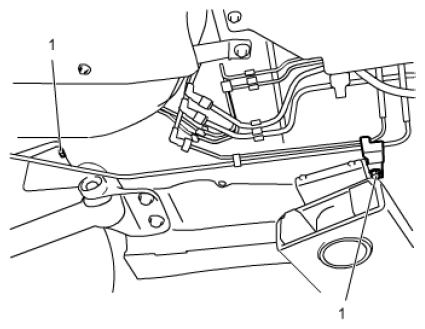

Remove air suction pipe bolts (1).

Fig 2: Identifying Air Suction Pipe Bolts
Courtesy of SUZUKI OF AMERICA CORP.

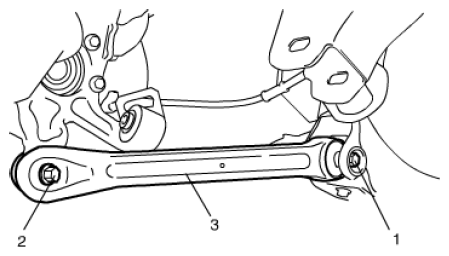

Remove trailing rod front bolt (1) and trailing rod rear bolt (2) and then trailing rod (3).

Fig 3: Identifying Trailing Rod, Front Bolt And Rear Bolts
Courtesy of SUZUKI OF AMERICA CORP.

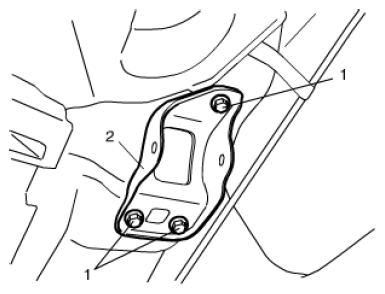

Remove trailing rod mount bracket bolt (1) and then trailing rod mount bracket (2).

Fig 4: Identifying Trailing Rod Mount Bracket And Bolt
