Rod and Arm Components

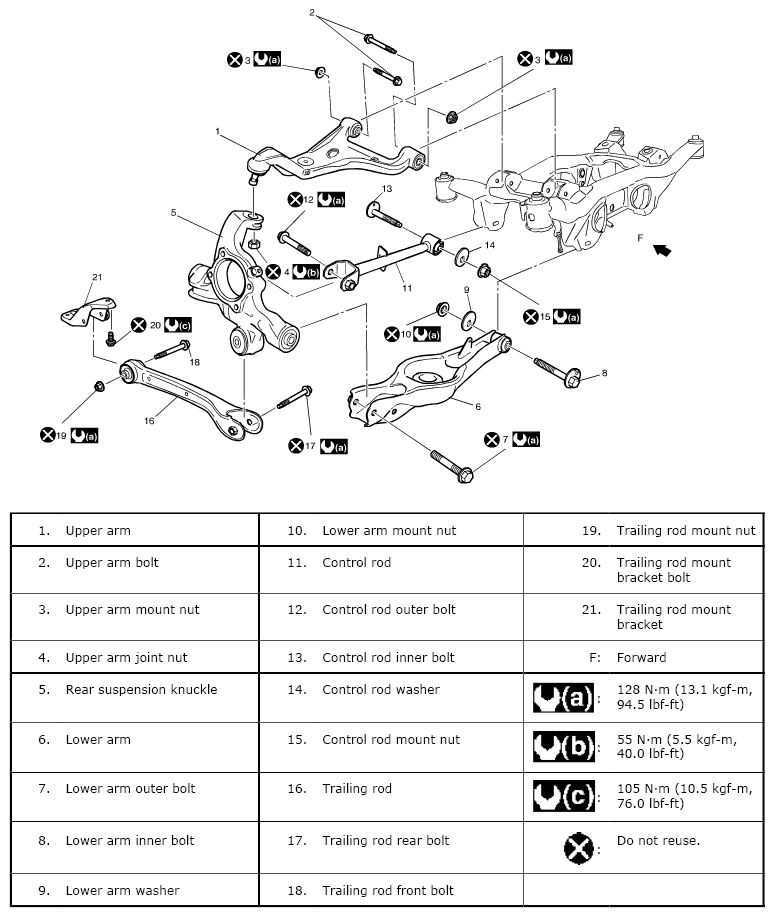

Fig 1: Exploded View Of Rod And Arm
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
