Rear Suspension Frame/Bushing Disassembly and Reassembly: Disassembly

Cut rubber (1) of flange of rear suspension frame bushing.
Using grinder (2), grind off flange (3) of upper arm bushing.
NOTE: If you grind the flange (3) of upper arm bushing too much, you will damage the rear suspension frame bushing (4).
Limit the amount of grinding to the minimum amount necessary.

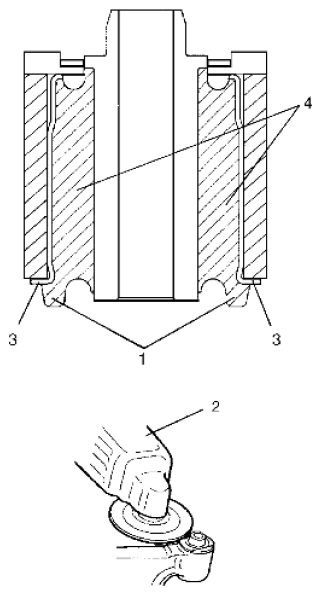

Fig 1: Grinding Off Flange Of Upper Arm Bushing Using Grinder
Courtesy of SUZUKI OF AMERICA CORP.
Push out rear suspension frame bushing by using hydraulic press (1) and special tool.
Special Tool

(A): 09913-75520

Fig 2: Pushing Out Rear Suspension Frame Bushing Using Hydraulic Press And Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
