Rear Shock Absorber and Rear Coil Spring Components

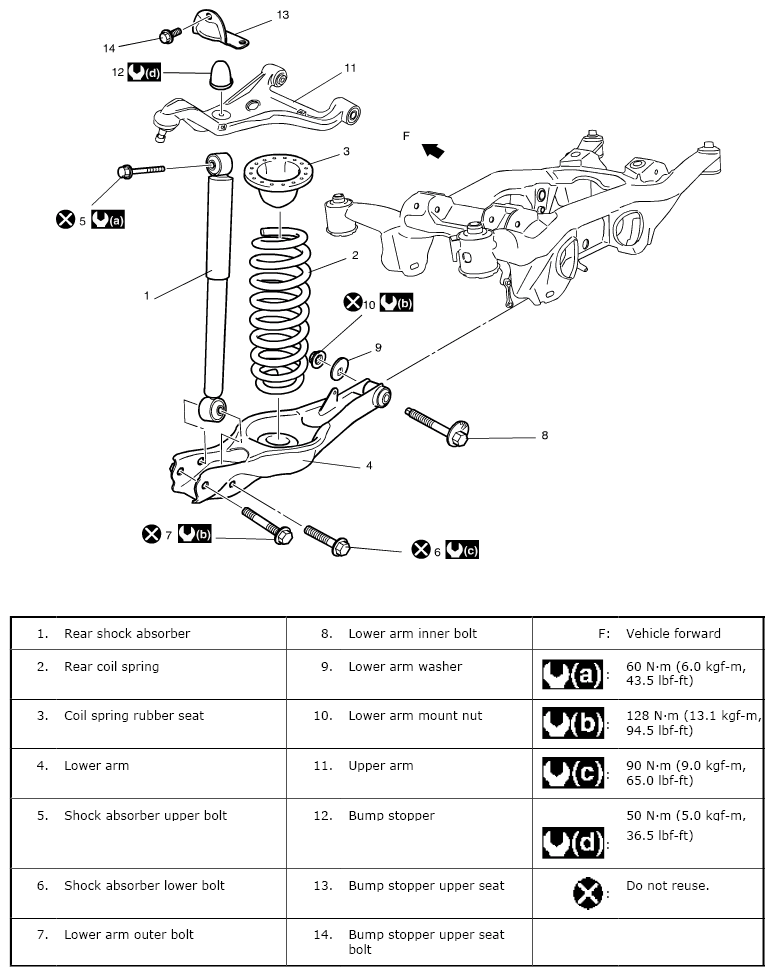

Fig 1: Exploded View Of Rear Shock Absorber And Rear Coil Spring
G08893924Courtesy of SUZUKI OF AMERICA CORP.
