Lower Arm/Bushing Disassembly and Reassembly: Reassembly

Press-fit suspension lateral link bushing (2) by using press (1) and special tool.
NOTE: Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.

Special Tool

(A): 09913-85210

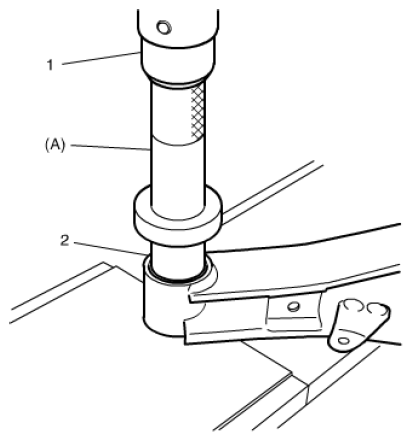

Fig 1: Press-Fitting Suspension Lateral Link Bushing Using Press And Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Press-fit bushing (1) so that dimension "A" and "B" in figure become equal.

Fig 2: Identifying Bushing Dimensions
Courtesy of SUZUKI OF AMERICA CORP.
