Lower Arm/Bushing Disassembly and Reassembly: Disassembly

Reference: LOWER ARM REMOVAL AND INSTALLATION

1. Push out suspension lateral link bushing by using hydraulic press (1) and special tool.

   Special Tool

   (A): 09913-84510

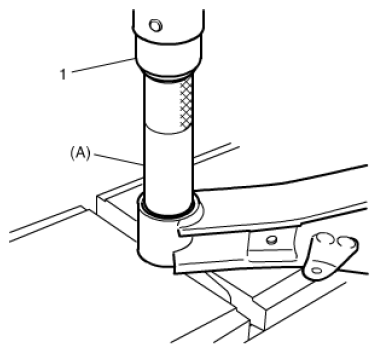

   Fig 1: Pushing Out Suspension Lateral Link Bushing Using Hydraulic Press And Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
