Control Rod/Bushing Disassembly and Reassembly: Reassembly

Press-fit control rod bushing (1) by using press (2) and special tool.
NOTE: Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.

Special Tool

(A): 09913-85210

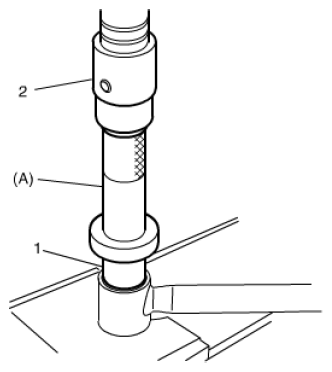

Fig 1: Press-Fitting Control Rod Bushing Using Press
Courtesy of SUZUKI OF AMERICA CORP.
Press-fit bushing so that dimensions "A" and "B" in figure become equal.

Fig 2: Identifying Dimensions Of Bushing
Courtesy of SUZUKI OF AMERICA CORP.
