Control Rod/Bushing Disassembly and Reassembly: Disassembly

  1. Push out control rod bushing by using hydraulic press (1) and special tool.

    Special Tool

    (A): 09913-84510

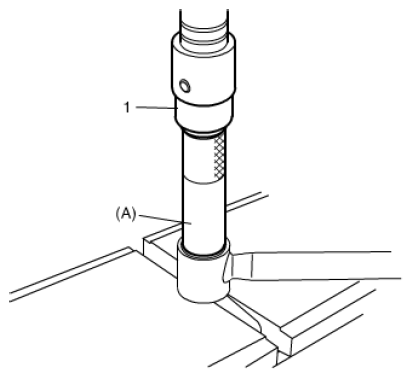

    Fig 1: Pushing Out Control Rod Bushing Using Hydraulic Press And Special Tool
    G08893942Courtesy of SUZUKI OF AMERICA CORP.
