Steering Wheel Removal and Installation: Removal

Remove driver air bag (inflator) module from steering wheel referring to DRIVER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION : Advanced Air Bag or DRIVER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION : Except Advanced Air Bag.
Disconnect horn connector and audio control switch connector, if equipped.
Remove steering shaft nut.
Make alignment marks (1) on steering wheel and shaft for a guide during reinstallation.

Fig 1: Identifying Alignment Marks On Steering Wheel And Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering wheel (1) with special tool.
NOTE: Hammering the end of the steering shaft will impair the collapsible steering column structure.
Do not hammer the end of the steering shaft.

Special Tool

(A): 09944-36011

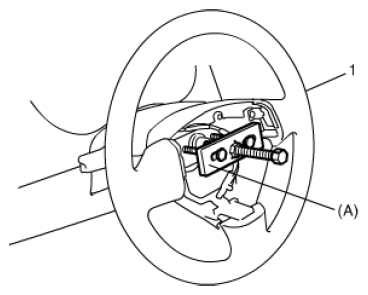

Fig 2: Removing Steering Wheel Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
