Contact Coil Cable Assembly Removal and Installation: Removal

Remove steering wheel from steering column. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
Remove steering column hole cover (1).

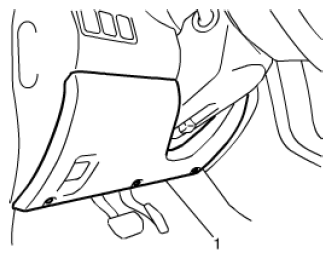

Fig 1: Identifying Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering column cover screws (1) (3 pieces).
Separate upper cover (2) and lower cover (3), then remove them.

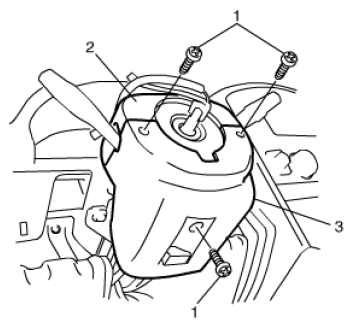

Fig 2: Identifying Steering Column Upper And Lower Cover With Screws
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect all connectors for contact coil cable assembly.
Remove contact coil cable assembly (1) with steering angle sensor (if equipped) from steering column.

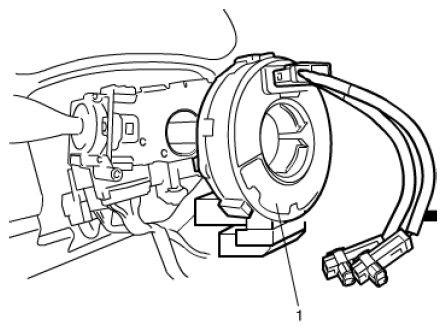

Fig 3: Identifying Contact Coil Cable Assembly And Steering Angle Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Separate steering angle sensor from contact coil cable assembly referring to STEERING ANGLE SENSOR REMOVAL AND INSTALLATION .
