Steering Gear Case Mount Bushing Removal and Installation: Removal

  1. Remove P/S gear case assembly referring to P/S GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
  2. Push out bushing using hydraulic press (1) and special tools.

    Special Tool

    (A): 09943-88211

    (B): 09945-55410

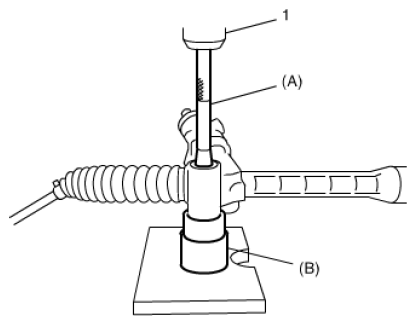

    Fig 1: Pushing Out Bushing Using Hydraulic Press
    G08894454Courtesy of SUZUKI OF AMERICA CORP.
