Side-Air Bag (Inflator) Module Removal and Installation: Installation

Reference: SIDE-AIR BAG (INFLATOR) INSPECTION

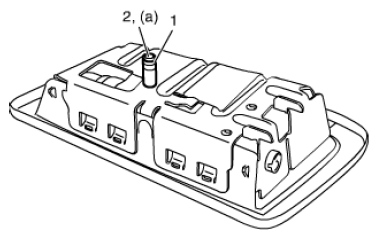

1. Confirm sleeve (1) is surely installed in side-air bag (inflator) module.
2. Tighten sleeve lock nut (2) to specified torque.

   Tightening torque

   Sleeve lock nut (a): 2.5 N.m (0.25 kgf-m, 2.0 lbf-ft)

3. Install new clip to seat back.
   Fig 1: Identifying Side-Air Bag (Inflator) Module Sleeve And Lock Nut

   Courtesy of SUZUKI OF AMERICA CORP.

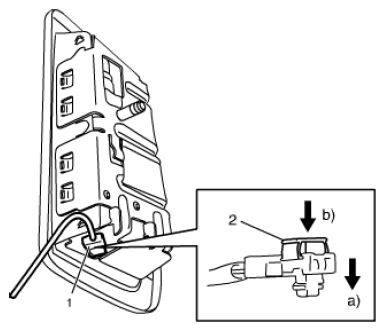

4. Connect side-air bag (inflator) module connector (1) securely as shown in the figure.
   1. Connect connector.
   2. Lock connector with lock button (2).
      Fig 2: Connecting Side-Air Bag (Inflator) Module Connector

      Courtesy of SUZUKI OF AMERICA CORP.

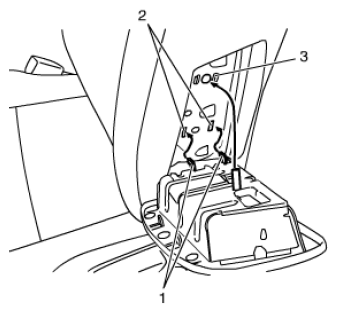

5. Insert claw (1) of side-air bag (inflator) module on installation hole (2).
6. Push side-air bag (inflator) module into clip (3) with specified force.

   Side-air bag (inflator) module installation force

   Pushing force: 180 N

   Fig 3: Identifying Side-Air Bag (Inflator) Module Installation Hole, Clip And Claw

   Courtesy of SUZUKI OF AMERICA CORP.
