Passenger Air Bag (Inflator) Module Inspection

Reference: PASSENGER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION

WARNING: Failure to take proper precautions when inspecting the passenger air bag (inflator) module can result in personal injury due to accidental deployment of the air bag.

Never attempt to measure the resistance of the air bag (inflator) module.
If anything abnormal is found with the air bag (inflator) module, never attempt to disassemble or repair the module, but replace it with a new one.
Be sure to read the following sections and follow all of the instructions provided: PRECAUTIONS ON SERVICE AND DIAGNOSIS OF AIR BAG SYSTEM PRECAUTIONS ON HANDLING AND STORAGE OF AIR BAG SYSTEM COMPONENTS and PRECAUTIONS ON DISPOSAL OF AIR BAG AND SEAT BELT PRETENSIONER .

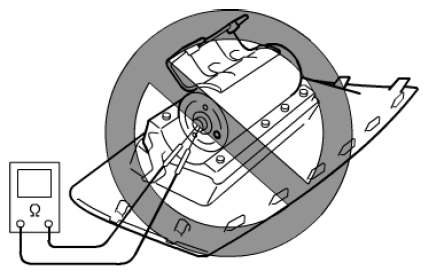

Fig 1: Caution For Inspecting Passenger Air Bag (Inflator) Module

Courtesy of SUZUKI OF AMERICA CORP.

Check air bag (inflator) module appearance visually for the following symptoms and if any one of them is found, replace with a new one.

Air bag has deployed.
Wire harness or connector is damaged.
Air bag (inflator) module is damaged or a strong impact was applied to it.
Bend or deformity of air bag (inflator) module bracket.
