Propeller Shaft Inspection

Check universal joint and spline of propeller shaft for rattle. If rattle is found, replace defective part with a new one.

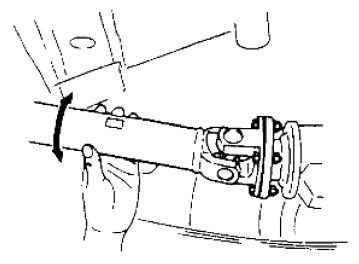

Fig 1: Checking Universal Joint And Spline Of Propeller Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Check propeller shaft (front and rear) flange yoke bolts for tightness, and retighten them as necessary.
Refer to TIGHTENING TORQUE SPECIFICATIONS .
