Emission-Related Hose and Tube Inspection

Check each vacuum hose and tube for secure connection.

Also, check that it is free from any bend or damage.

Correct faulty condition, if any.

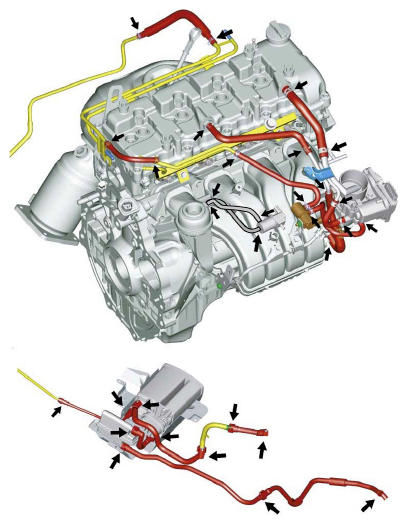

Fig 1: Locating Vacuum Hose And Tube Checking Points

Courtesy of SUZUKI OF AMERICA CORP.
