All Hinges, Latches and Locks Inspection: Doors

Check that each door of front, rear and back (rear end) doors opens and closes smoothly and locks securely when closed.

If any malfunction is found, lubricate hinge and latch or repair door lock system.

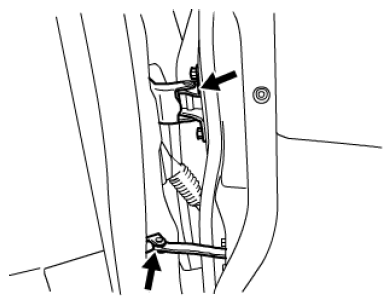

Fig 1: Locating Hinges, Latches And Locks Checking Points

Courtesy of SUZUKI OF AMERICA CORP.
