Auto A/C Electronic Control Input/Output Diagram

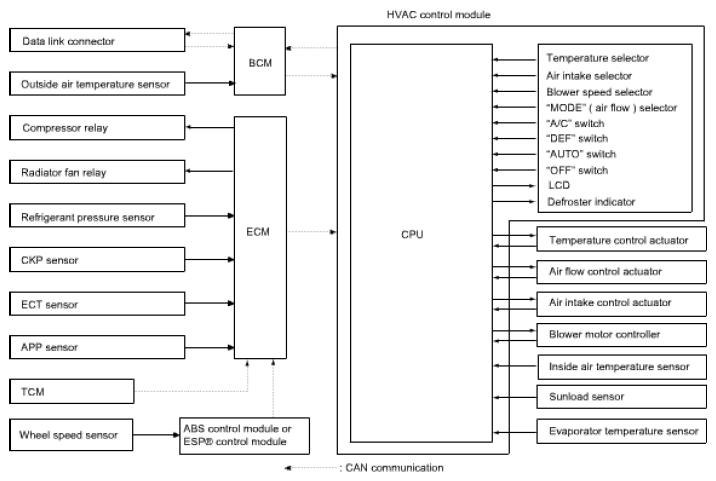

Fig 1: Auto A/C Electronic Control Input/Output Block Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
