A/C System Wiring Circuit Diagram

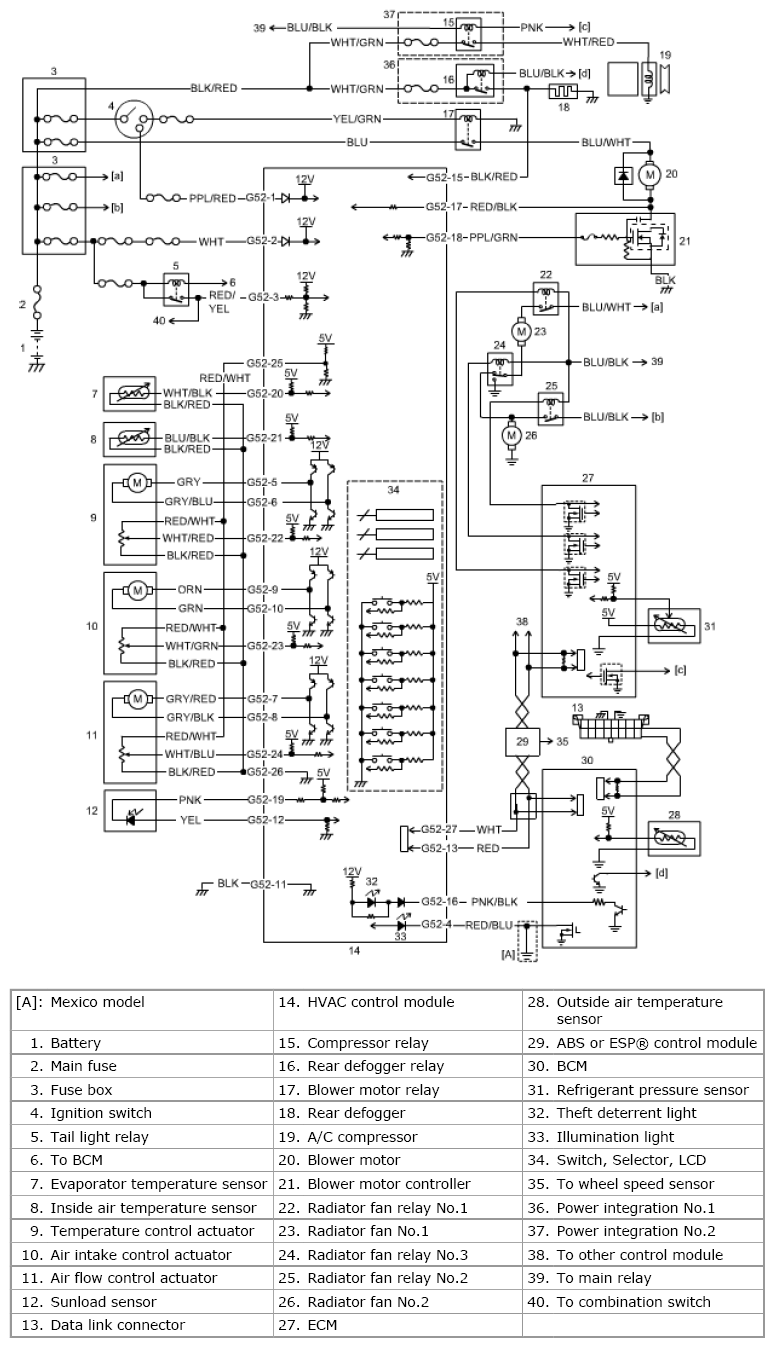

Fig 1: A/C System - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
