Operation Procedure for Charging A/C with Refrigerant: Notes

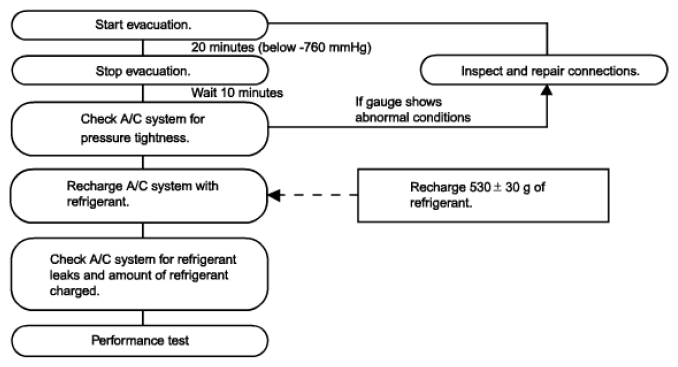

Fig 1: Charging A/C With Refrigerant Procedure Chart
G08894528Courtesy of SUZUKI OF AMERICA CORP.
