Inside Air Temperature Sensor Inspection

  1. Remove Inside air temperature sensor referring to INSIDE AIR TEMPERATURE SENSOR REMOVAL AND INSTALLATION .
  2. Check resistance between terminals.

    Inside air temperature sensor resistance

    Approx. 1.7 kΩ ± 85 Ω at 25 °C (77 °F)

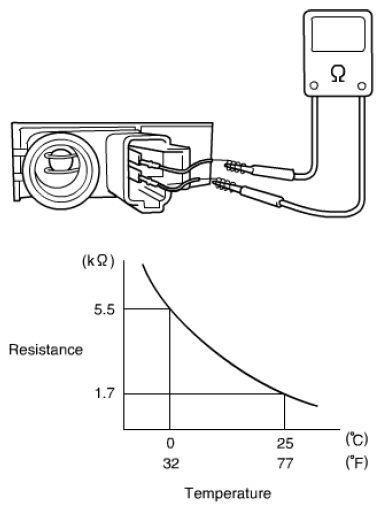

    Fig 1: Checking Resistance Between Terminals
    G08894558Courtesy of SUZUKI OF AMERICA CORP.
