HVAC Unit Removal and Installation: Removal
- Disconnect negative (-) cable at battery.
- Disable air bag system referring to DISABLING AIR BAG SYSTEM
:Advanced Air Bag
or DISABLING AIR BAG SYSTEM
:Except Advanced Air Bag
.
- Recover refrigerant from A/C system using recovery and recycling equipment referring to "RECOVERY " in Operation Procedure for Charging A/C with Refrigerant .

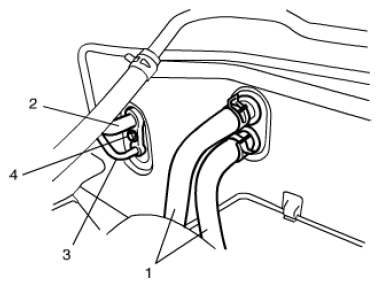

- Drain engine coolant and disconnect heater hoses (1) from HVAC unit.
- Disconnect suction hose (2) and condenser outlet hose (3) by removing attaching bolt (4).
Courtesy of SUZUKI OF AMERICA CORP.
- Remove instrument panel referring to INSTRUMENT PANEL REMOVAL AND INSTALLATION
.
- Disconnect rear duct from HVAC unit.
- Detach wiring, connectors and clamps from HVAC unit.

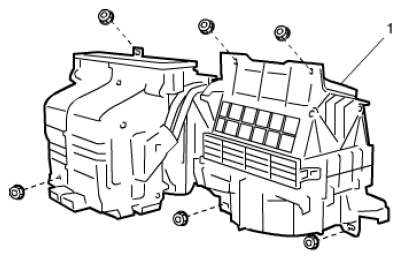

- Remove HVAC unit (1).
