HVAC Unit Components

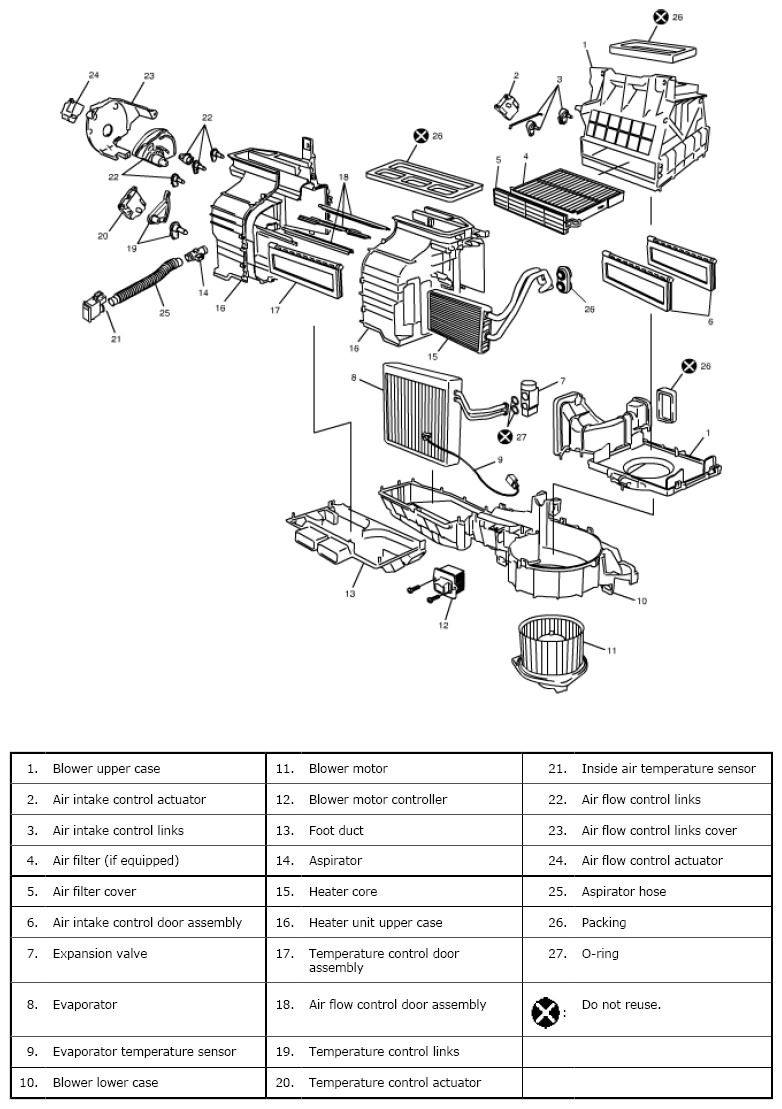

Fig 1: HVAC Unit Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
