Expansion Valve Removal and Installation: Removal

  1. Recover refrigerant from the A/C system with recovery and recycling equipment referring to "RECOVERY " in Operation Procedure for Charging A/C with Refrigerant .
  2. Loosen a bolt (1) and remove pipes from expansion valve (2).
  3. Loosen bolts (3) and remove expansion valve.

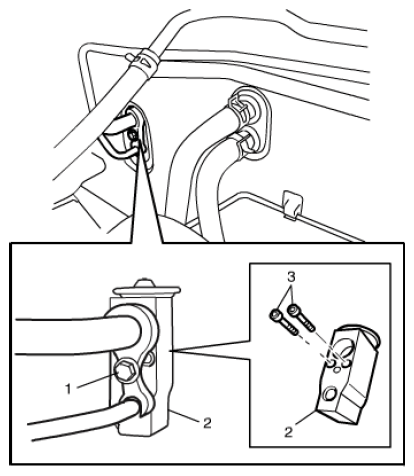

    Fig 1: Identifying Expansion Valve With Bolt
    G08894551Courtesy of SUZUKI OF AMERICA CORP.
