Desiccant Removal and Installation: Removal

  1. Remove condenser assembly from vehicle referring to A/C CONDENSER ASSEMBLY REMOVAL AND INSTALLATION .
  2. Remove circlip (4) using special tool.

    Special Tool

    : 09900-06107

  3. Remove the filter (1) from the receiver/dryer tank (2).
  4. Remove desiccant (3).

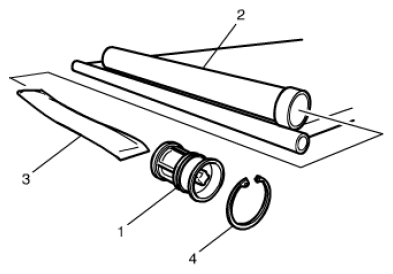

    Fig 1: Identifying Filter, Receiver / Dryer Tank, Desiccant And Circlip
    G08894536Courtesy of SUZUKI OF AMERICA CORP.
