A/C Refrigerant Pressure Sensor Removal and Installation: Installation

Reference: A/C REFRIGERANT PRESSURE SENSOR AND ITS CIRCUIT INSPECTION

Reverse removal procedure noting the following instructions.

• Apply compressor oil to O-ring of A/C refrigerant pressure sensor.
• Tighten A/C refrigerant pressure sensor (1) to specified torque.

  Tightening torque

  A/C refrigerant pressure sensor (a): 11 N.m (1.1 kgf-m, 8.0 lbf-ft)

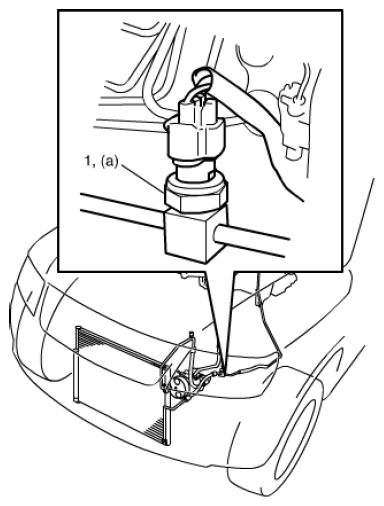

  Fig 1: Identifying A/C Refrigerant Pressure Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
• Evacuate and charge the A/C system referring to "EVACUATION " and "CHARGE " in OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
