A/C Condenser Assembly Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Recover refrigerant from A/C system referring to OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
NOTE: The amount of removed compressor oil must be measured for replenishing.
Remove front bumper assembly referring to FRONT BUMPER COMPONENTS .
Remove front bumper upper member.
Disconnect compressor discharge hose (1) and liquid pipe (2) from condenser assembly (4).
NOTE: Seal opening of the disconnected parts to prevent moisture and foreign matter from entering.
Remove condenser assembly mounting bolts (3), and then remove condenser assembly.

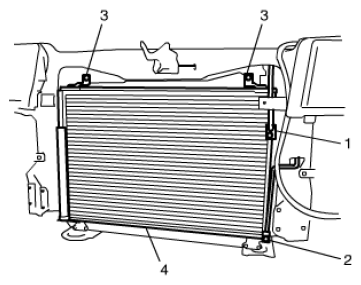

Fig 1: Identifying Discharge Hose, Liquid Pipe, Condenser Assembly With Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
