Using SUZUKI Scan Tool

  1. Turn OFF ignition switch.
  2. Connect SUZUKI scan tool to DLC (1).

    Special Tool

    (A): SUZUKI scan tool (SUZUKI-SDT)

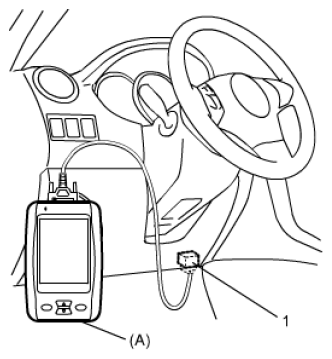

    Fig 1: Connecting Suzuki Scan Tool To Data Link Connector
    G08894509Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ON ignition switch.
  4. Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
  5. After completing the clearance, turn ignition switch to OFF position and disconnect SUZUKI scan tool from DLC.
  6. Perform DTC CHECK  and confirm if normal DTC (NO CODES) is displayed.
