Not Using SUZUKI Scan Tool

  1. Display history DTC on LCD referring to "NOT USING SUZUKI SCAN TOOL " under DTC CHECK .
  2. Make sure that DTC and "FAN" display (1) were displayed.
  3. Push "OFF" switch (2) and "MODE" selector (3) simultaneously for 3 seconds or more.

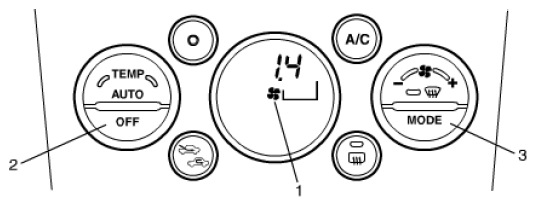

    Fig 1: Display History DTC On LCD
    G08894510Courtesy of SUZUKI OF AMERICA CORP.
  4. After completing the clearance, "CLr" (4) is displayed.

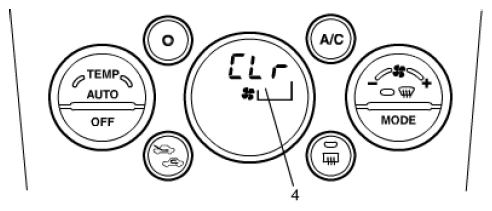

    Fig 2: Display "CLr"
    G08894511Courtesy of SUZUKI OF AMERICA CORP.
  5. Check that no DTC is displayed on LCD referring DTC CHECK .
