Electronic Shift Control Input/Output Diagram

WARNING: This page is about a different variant/trim than selected.

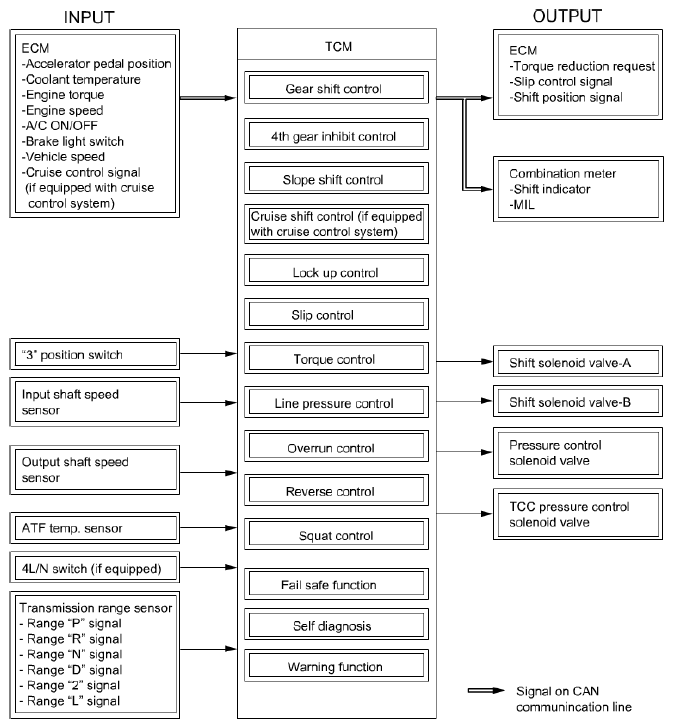

Fig 1: Electronic Shift Control Input/Output Block Diagram
G08898831Courtesy of SUZUKI OF AMERICA CORP.
