Transmission Range Sensor Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect negative cable at battery.
  2. Hoist vehicle.
  3. Disconnect transmission range sensor connector (1).
  4. Disconnect select cable (2) from manual select lever (3).
  5. Remove manual select lever (3) from transmission range sensor (4).

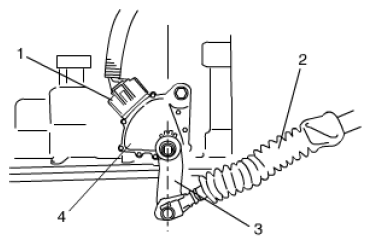

    Fig 1: Identifying Transmission Range Sensor, Connector, Select Cable And Manual Select Lever
    G08898872Courtesy of SUZUKI OF AMERICA CORP.
  6. Unbend bend parts of lock washer (1), then remove manual shift shaft nut (2), lock washer (1) and grommet.
  7. Remove transmission range sensor (3) by removing sensor bolt (4).

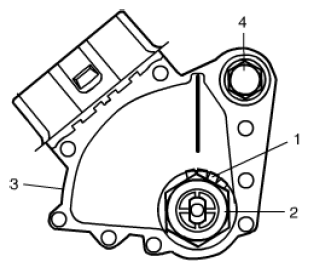

    Fig 2: Identifying Transmission Range Sensor, Manual Shift Shaft Nut, Lock Nut And Washer
    G08898873Courtesy of SUZUKI OF AMERICA CORP.
