Transmission Range Sensor Inspection and Adjustment

WARNING: This page is about a different variant/trim than selected.

Shift manual select lever to "N" range.
Check that center line (2) on manual shift and "N" reference line (1) on sensor are aligned. If not, loosen sensor bolt (3) and align them.

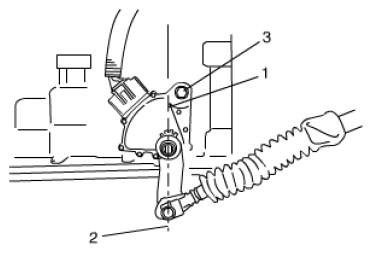

Fig 1: Identifying Transmission Range Sensor Bolt, Center Line And "N" Reference Line
Courtesy of SUZUKI OF AMERICA CORP.
Check that engine starts in "N" and "P" ranges but it does not start in "D", "3", "2", "L" or "R" range.
Also, check that back-up light lights in "R" range. If faulty condition cannot be corrected by adjustment, disconnect transmission range sensor connector and check that continuity exists as shown by moving select lever.

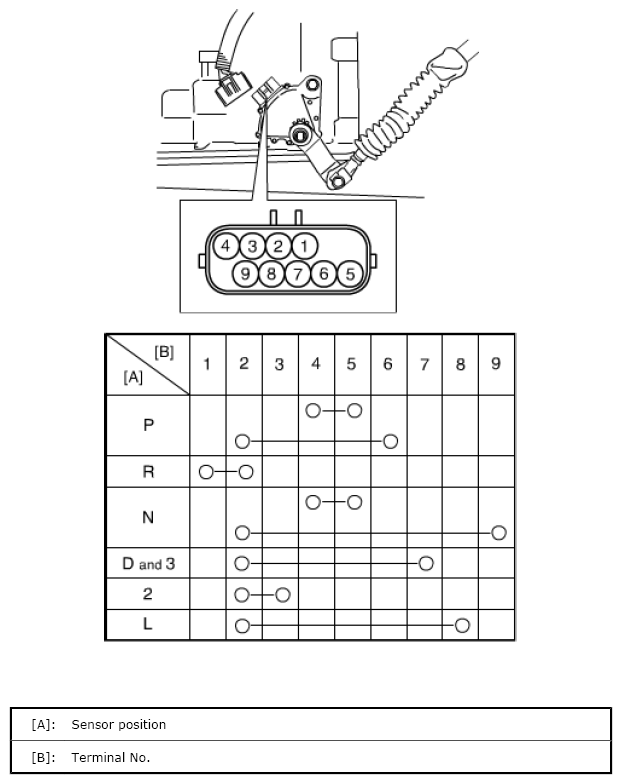

Fig 2: Transmission Range Sensor Switch Continuity Reference Chart
Courtesy of SUZUKI OF AMERICA CORP.
