TCM Learning Control Initialization

WARNING: This page is about a different variant/trim than selected.

Connect scan tool to DLC (1) with ignition switch OFF.
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)

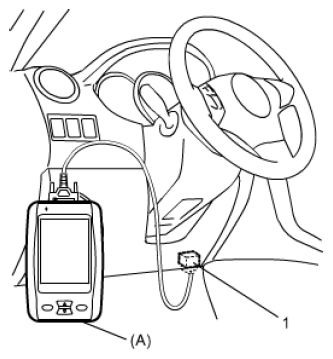

Fig 1: Connecting Suzuki Scan Tool To DLC
Courtesy of SUZUKI OF AMERICA CORP.
Start engine and shift selector lever to "P" range.
Select "Misc Test" mode on scan tool.
Perform "AT learned initialize" on scan tool.
