Overdrive (Case Side) Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove retaining ring (1), brake backing plate (2), brake disc (3) and brake plate (4) in that order. Then remove planetary ring gear, thrust bearing race and thrust bearing.

Fig 1: Identifying Retaining Ring, Brake Backing Plate, Brake Disc And Brake Plate
Courtesy of SUZUKI OF AMERICA CORP.
Remove retaining ring and piston return spring using special tool and hydraulic press (1).
Special Tool

(A): 09926-96510

NOTE: Applying excessive pressure when compressing the piston return spring will deform the spring's plate section.
Do not apply any more pressure than is necessary.

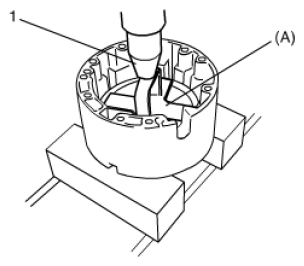

Fig 2: Removing Retaining Ring And Piston Return Spring Using Special Tool And Hydraulic Press
Courtesy of SUZUKI OF AMERICA CORP.
Apply compressed air (400 - 800 kPa, 4 - 8 kgf/cm² , 57 - 113 psi) to oil hole (1) in O/D case (2) and remove brake piston.

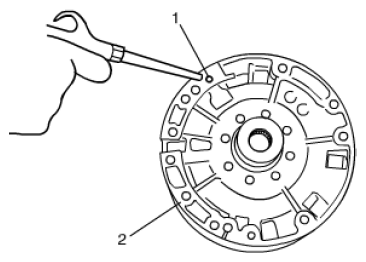

Fig 3: Applying Compressed Air To O/D Case Oil Hole
Courtesy of SUZUKI OF AMERICA CORP.
Remove brake piston inner ring and brake piston outer ring from brake piston.
Unsnap seal ring (1).
Remove 2 seal rings (1).

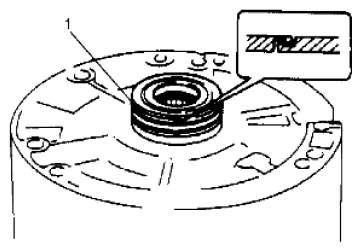

Fig 4: Identifying Seal Rings
Courtesy of SUZUKI OF AMERICA CORP.
