Forward Clutch Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

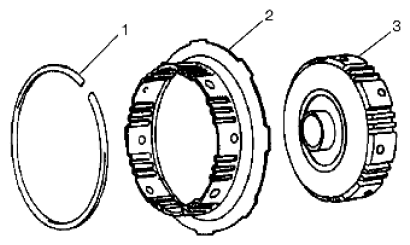

After removing retaining ring (1), remove direct clutch hub (2) and forward clutch hub (3).

Fig 1: Identifying Direct, Forward Clutch Hub And Retaining Ring
Courtesy of SUZUKI OF AMERICA CORP.

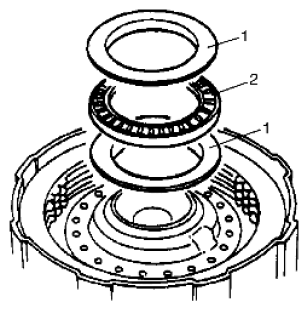

Remove bearing race (1) and thrust bearing (2).

Fig 2: Identifying Bearing Races And Thrust Bearing
Courtesy of SUZUKI OF AMERICA CORP.

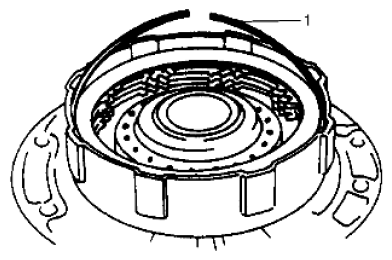

Remove retaining ring (1) and then remove all clutch discs.

Fig 3: Identifying Clutch Discs Retaining Ring
Courtesy of SUZUKI OF AMERICA CORP.

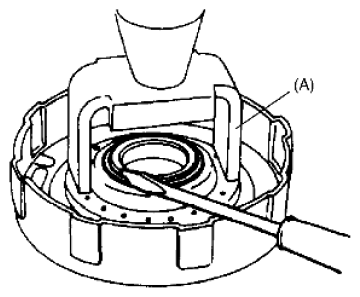

Using special tool and hydraulic press, compress forward clutch piston return spring and remove retaining return spring.
Special Tool

(A): 09926-98310

NOTE: Applying excessive pressure when compressing the piston return spring will deform the spring's plate section.
Do not apply any more pressure than is necessary.
Remove forward clutch piston return spring.

Fig 4: Removing Forward Clutch Piston Return Spring
Courtesy of SUZUKI OF AMERICA CORP.

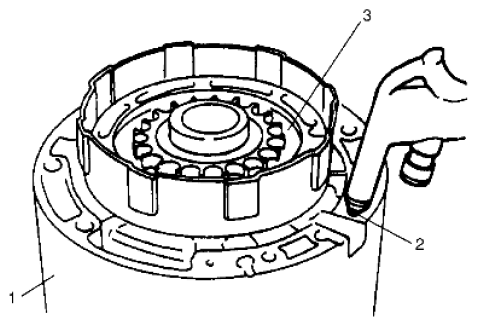

Install forward clutch to O/D case (1). Blow low pressure air into fluid hole (2) at the right of cut in O/D case to remove forward clutch piston (3).

Fig 5: Blowing Low Pressure Air From O/D Case Fluid Hole
Courtesy of SUZUKI OF AMERICA CORP.
