Center Support Disassembly and Reassembly: Disassembly

Reference: AUTOMATIC TRANSMISSION UNIT DISASSEMBLY

Reference: CENTER SUPPORT COMPONENTS

1. Remove retaining ring.

   Special Tool

   (A): 09920-76010

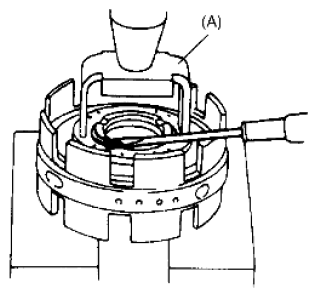

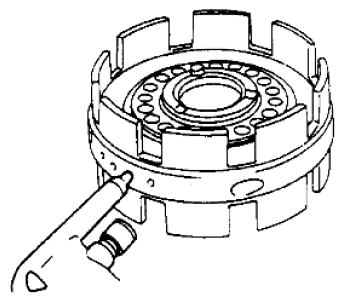

   Fig 1: Removing Retaining Ring Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
2. Pull out center support assembly (2) from planetary sun gear (1).

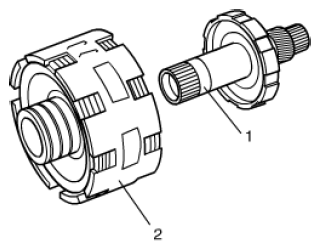

   Fig 2: Identifying Center Support Assembly And Planetary Sun Gear

   Courtesy of SUZUKI OF AMERICA CORP.
3. Apply compressed air (400 - 800 kPa, 4 - 8 kgf/cm² , 57 - 113 psi) to oil hole (1) at the extreme left and measure movement of second coast brake (Second coast brake) piston. If measured value is not within standard range, replace second coast brake plate or second coast brake disc.

   Standard second coast brake piston movement

   0.75 - 1.35 mm (0.030 - 0.053 in.)

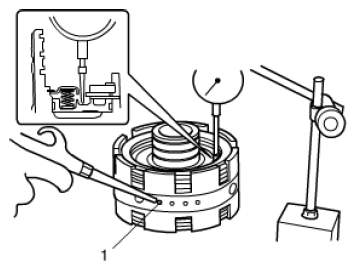

   Fig 3: Measuring Second Coast Brake Piston Movement Using Special Tools

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove retaining ring.

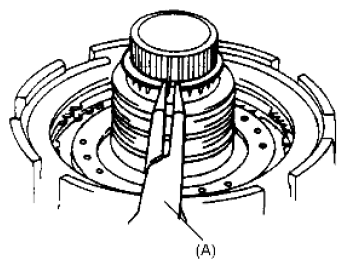

   Fig 4: Removing Retaining Ring

   Courtesy of SUZUKI OF AMERICA CORP.
5. After removing clutch backing plate (1), remove second coast brake plate (3) and second coast brake disc (2).
   Fig 5: Identifying Clutch Backing Plate, Second Coast Brake Plate And Disc

   Courtesy of SUZUKI OF AMERICA CORP.
6. Using special tool and hydraulic press, compress piston return spring and remove snap ring.
   NOTE: Applying excessive pressure when compressing the piston return spring will deform the spring's plate section.
   Do not apply any more pressure than is necessary.

   Special Tool

   (A): 09926-98310

   Fig 6: Removing Snap Ring Using Special Tool And Hydraulic Press

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove brake piston return spring (1).

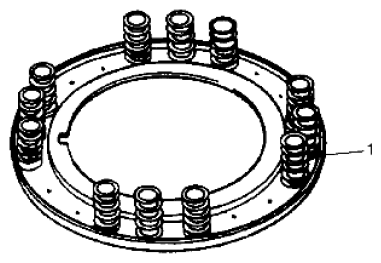

   Fig 7: Identifying Brake Piston Return Spring

   Courtesy of SUZUKI OF AMERICA CORP.
8. Apply compressed air (400 - 800 kPa, 4 - 8 kgf/cm² , 57 - 113 psi) to oil hole at the extreme left and remove second coast brake piston as shown in figure. Then remove piston inner O-ring and piston outer O-ring from second coast brake piston.

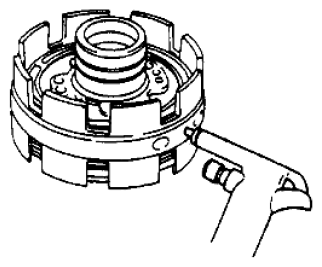

   Fig 8: Applying Compressed Air To Oil Hole

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove 3 seal rear rings (1).

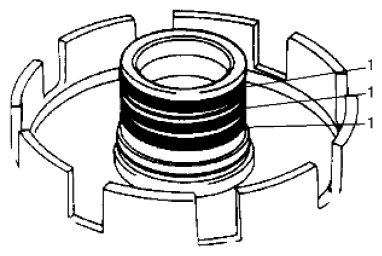

   Fig 9: Identifying Seal Rear Rings

   Courtesy of SUZUKI OF AMERICA CORP.
10. Apply compressed air (400 - 800 kPa, 4 - 8 kgf/cm² , 57 - 113 psi) to second hole (1) from the left and measure stroke of second brake (Second brake) piston as shown in figure.

    If measured value is not within standard range, replace second brake plate or second brake disc.

    Standard second brake piston stroke

    0.97 - 1.70 mm (0.038 - 0.067 in.)

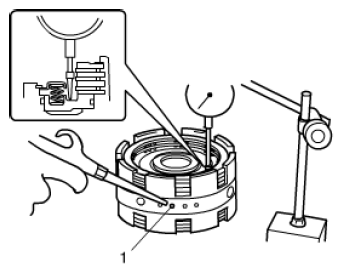

    Fig 10: Measuring Second Brake Piston Stroke

    Courtesy of SUZUKI OF AMERICA CORP.
11. After removing retaining back plate ring, remove clutch backing plate, second brake plates and second brake discs.
    Fig 11: Removing Retaining Back Plate Ring Using Tool

    Courtesy of SUZUKI OF AMERICA CORP.
12. Using special tool and hydraulic press, compress brake piston return spring and remove snap second coast brake ring.
    NOTE: Applying excessive pressure when compressing the piston return spring will deform the spring's plate section.
    Do not apply any more pressure than is necessary.

    Special Tool

    (A): 09926-98310

    Fig 12: Removing Snap Second Coast Brake Ring Using Special Tool And Hydraulic Press

    Courtesy of SUZUKI OF AMERICA CORP.
13. Remove brake piston return spring.

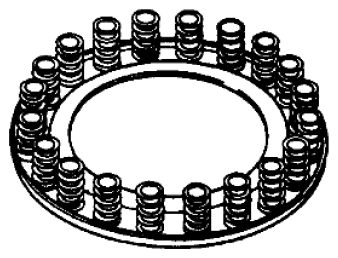

    Fig 13: Identifying Brake Piston Return Spring

    Courtesy of SUZUKI OF AMERICA CORP.
14. Blow air into the second air hole from the right and remove second brake piston. Then remove piston inner O-ring and piston outer O-ring from second brake piston.
    Fig 14: Blowing Air Into Air Hole

    Courtesy of SUZUKI OF AMERICA CORP.
15. With second brake hub assembly (3) held stationary, turn planetary sun gear (4) clockwise to check that it locks and then counterclockwise to check that it turns smoothly.

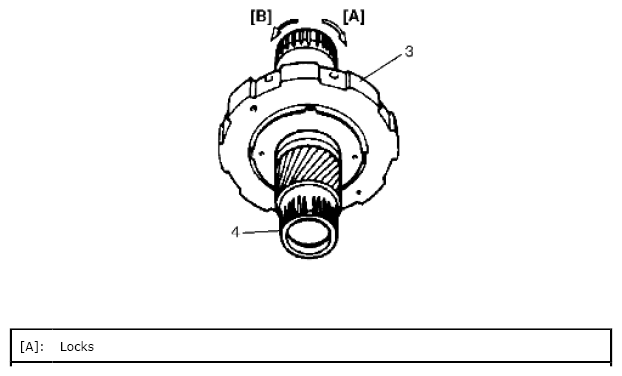

    Fig 15: Turning Planetary Sun Gear

    Courtesy of SUZUKI OF AMERICA CORP.
16. Remove second brake hub assembly (1) from planetary sun gear (2).
    Fig 16: Identifying Second Brake Hub Assembly And Planetary Sun Gear

    Courtesy of SUZUKI OF AMERICA CORP.
17. Remove 2 sun gear seal rings (1) from planetary sun gear.
    Fig 17: Identifying Sun Gear Seal Rings

    Courtesy of SUZUKI OF AMERICA CORP.
