Reference Waveform No. 4
WARNING: This page is about a different variant/trim than selected.

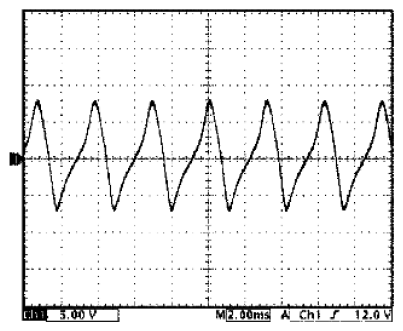

Output shaft speed sensor signal at vehicle speed 40 km/h (25 mile/h).
| Measurement terminal |
CH1: "E93-5" to "E92-1" |
| Oscilloscope setting |
CH1: 5 V/DIV
TIME: 2 ms/DIV |
| Measurement condition |
- After warmed up to normal operating temperature
- Drive vehicle at 40 km/h (25 mile/h).
|
