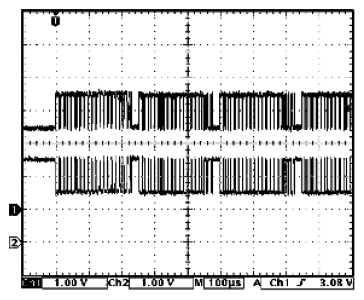

Reference Waveform No. 3
WARNING: This page is about a different variant/trim than selected.
CAN communication line (High & Low) signal at engine idling.
| Measurement terminal |
CH1: "E92-7" to "E92-1"
CH2: "E92-17" to "E92-1" |
| Oscilloscope setting |
CH1: 1 V/DIV
TIME: 100 μs/DIV |
| Measurement condition |
- After warmed up to normal operating temperature
- Engine at specified idle speed with "P" range.
|
