Fuel Hose Disconnecting and Reconnecting
>>
For Connection Other Than Quick Joint
>>
Clamp around fuel tank
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Clamp around fuel tank

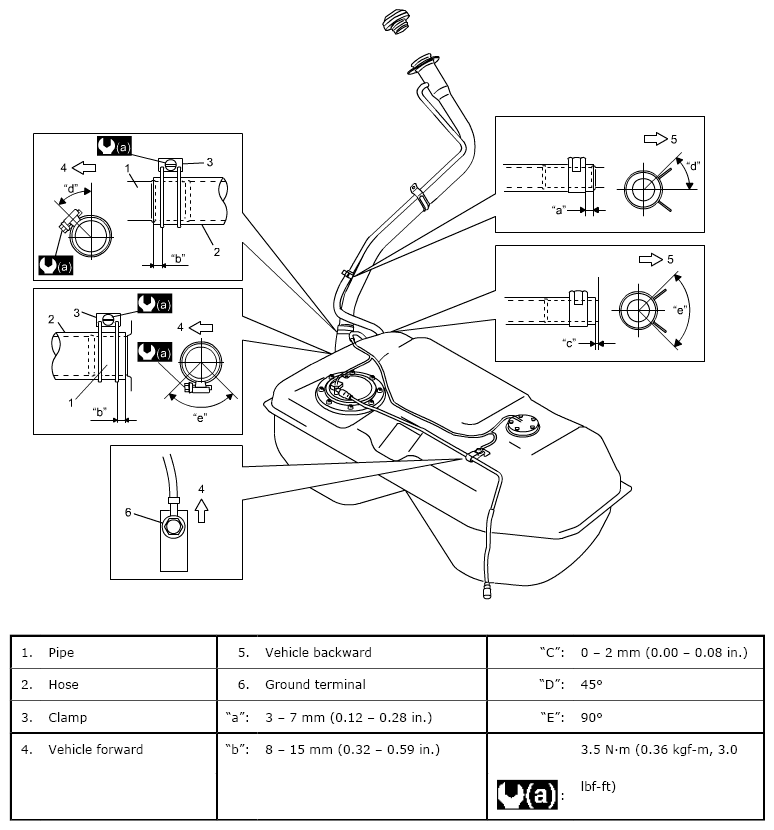

Fig 1: Connections Of Fuel Hose And Clamp Around Fuel Tank
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
