Oil Pan and Oil Pump Strainer Components

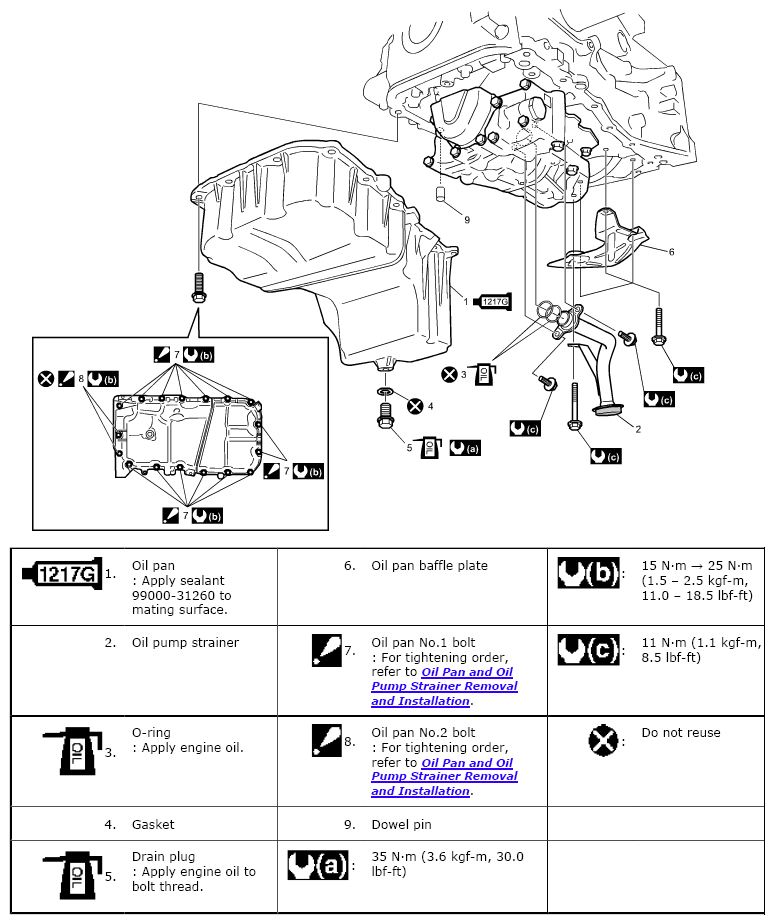

Fig 1: Identifying Oil Pan And Oil Pump Strainer Components
G08895401Courtesy of SUZUKI OF AMERICA CORP.
