Balancer Shaft Thrust Play

  1. Install balancer shafts, balancer bearings and balancer shaft cover to oil pump housing. Refer to Balancer Shaft Removal and Installation .
  2. Using dial gauge, measure thrust play (axial direction) as shown in figure.

    Balancer shaft thrust play

    Standard: 0.150 - 0.290 mm (0.0059 - 0.0114 in.)

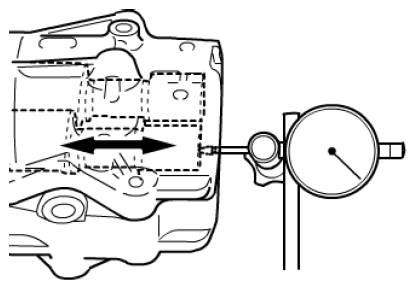

    Fig 1: Measuring Balancer Shaft Thrust Play
    G08895443Courtesy of SUZUKI OF AMERICA CORP.
