Balancer Shaft Removal and Installation: Removal

Remove oil pump assembly. Refer to Oil Pump Assembly Removal and Installation .

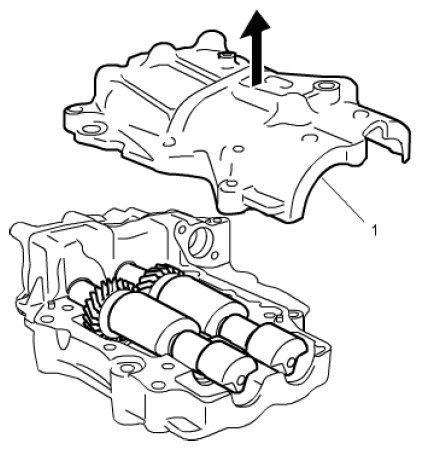

Remove balancer shaft cover (1) from oil pump assembly.

Fig 1: Removing Balancer Shaft Cover From Oil Pump Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove oil pump sprocket according to the following procedure.

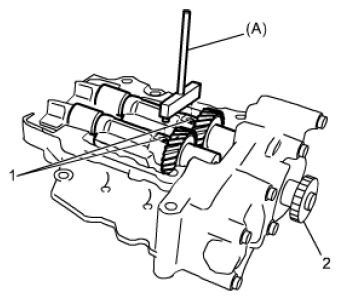

1. Insert special tool into aligning holes in balancer shafts No. 1 and No. 2 to prevent balancer shafts from rotating.
  Special Tool

  (A): 09914-67810
2. Remove oil pump sprocket (2) while holding by special tool in position.

  Fig 2: Inserting Special Tool Into Aligning Holes In Balancer Shafts No. 1 And No. 2 To Prevent Balancer Shafts
  Courtesy of SUZUKI OF AMERICA CORP.
Remove balancer shafts No. 1 and No. 2 according to the following procedure.

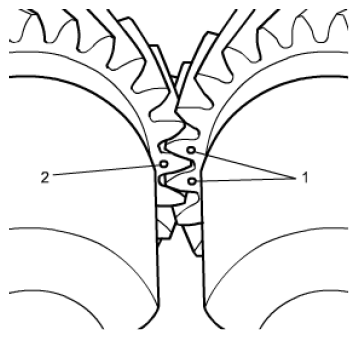

1. Align match marks (1) on balancer gear No. 1 with match mark (2) on balancer gear No. 2 as shown in figure.

  Fig 3: Aligning Match Marks On Balancer Gear No. 1 And Balancer Gear No. 2
  Courtesy of SUZUKI OF AMERICA CORP.

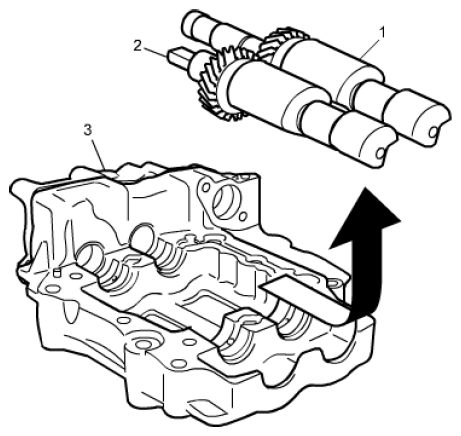

2. Remove balancer shafts No. 1 (1) and No. 2 (2) from oil pump housing (3) by sliding them in direction of arrow.

  Fig 4: Removing Balancer Shafts No. 1 And No. 2 From Oil Pump Housing
  Courtesy of SUZUKI OF AMERICA CORP.
Remove balancer shaft bearings if necessary.
